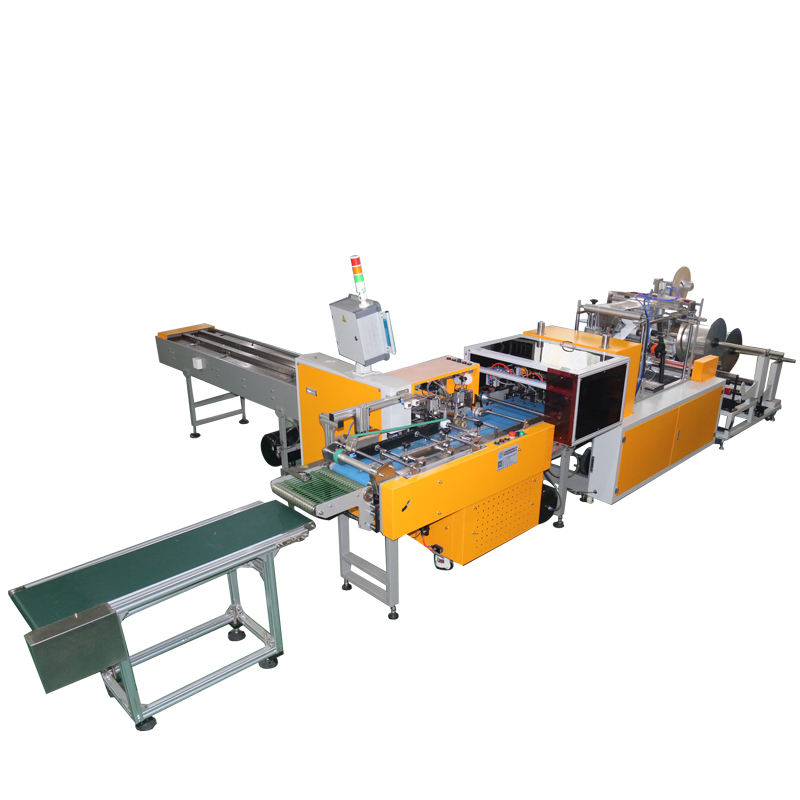

Self-adhesive bag packing machine of CHANFER Package Company provides you with more diversified solutions for packaging. New design concepts and packaging methods of self-adhesive bags bring changes in former manual bagging methods. The designer considers from the perspective of users and the machine is featured by its good taste in appearance, simplicity in operation, convenience in change of designs and so forth.
Scope of Application:
Regular sheet products are the main packaging objects of this equipment. Such as cards, red envelopes, brochures, paper bags, warranty cards, envelopes, greeting cards, hangtag, notebooks, postcards, tag and other products.
Features:
1. CFZD30-35 multi-function bagging machine, with new structure and diverse functions, saving time and labour;
2. Multi-servo control which enables multi-function fast switching. The machine features debugging convenience and high performance;
3. The original flat-bag heat sealing technology which meets the customer requirements for the quality of bags and different functions to a greater extent;
4. Finished product automatic transmission and counting function, a lot of manpower is saved, the problem of manpower shortage is solved, to reach a higher degree of automation integration;
5. Temperature independent PID intelligent control. Temperature stability, better for a variety of packaging materials;
6. Color touch screen, easy and quick setting.
7.With the function of film bag feeding by sucker, the bag waste amount of debugging for bag length change will be limited in 3 bags
8.Labeling before bag feeding with a tolerance in 2mm, and no crookedness
9.Extended conveyor allows a multiple labelers` assembly
Product specifications and technical parameters:
|
Item |
Description |
|
|
Packaging Materials |
OPP, CPP, PP material; it requires the use of a roll,, the inner shaft diameter of 75mm; the film surface is required to be flat, the edge should not be wave-shaped, contrast of color scale and packaging film background color is required to be obvious. |
|
|
Width Size of Bagging |
100mm-280mm |
|
|
Maximum Length of Bagging |
300mm |
|
|
The height of packing products |
1-15mm |
|
|
Packing Speed |
201-40 package/Minute(Determined by bag length and bag width) |
|
|
Film Thickness |
0.025-0.06mm |
|
|
Film Outer Diameter |
Maximum ≤450mnm |
|
|
Roll film |
Need to fold in half, keep the tongue |
|
|
Tongue length |
≤30mm (Determined by bag length and bag width) |
|
|
|
|
|
|
Energy Roll film
Air Pressure |
Power Supply |
380V,50Hz 15KW |
|
|
0.06MP≤Air Pressure≤0.08MP |
|
|
|
|
|
|
External |
Overall Dimension |
Length6000mm×Width4000mm |
|
Operation height |
800mm |
|
